Outboard Motor Compatibility Check
Not sure which outboard motor fits your boat? Use this guide to find the perfect match — or contact our expert team for personalized advice.
1. Boat Size & Horsepower Guide
The most important starting point is matching your boat’s size and weight to the right horsepower range. As a general rule, a boat needs approximately 1 horsepower for every 25–50 pounds of vessel weight (including passengers, gear, and fuel).
Table
| Boat Length | Approx. Weight | Recommended HP |
|---|---|---|
| 10–14 ft | Up to 700 lbs | 8–15 HP |
| 12–16 ft | 450–1,000 lbs | 15–25 HP |
| 15–17 ft | 700–1,300 lbs | 25–40 HP |
| 16–20 ft | 1,000–2,500 lbs | 40–90 HP |
| 20–25 ft | 2,000–5,000 lbs | 90–150 HP |
| 25–30 ft | 5,000–10,000 lbs | 150–250 HP |
| 30–40 ft | 10,000–18,000 lbs | 250–400+ HP |
Tip: Always check your boat’s maximum horsepower rating on the capacity plate — never exceed this limit.
Why Compatibility Matters
Choosing the right outboard motor is about more than just horsepower. The wrong motor can lead to poor performance, excessive fuel consumption, engine damage, or even safety risks. At Regal Boats Marine BV, we want every customer to get the right motor the first time.
The key factors to check are:
- Boat size and weight
- Required horsepower
- Shaft length
- Propeller specifications
- Fuel system compatibility
- Steering and control setup
2. Shaft Length: The Critical Measurement
An incorrect shaft length causes cavitation, poor handling, and potential engine damage. Here’s how to measure:
How to Measure:
- Measure from the top of your boat’s transom to the bottom of the transom (where the motor mounts).
- Match your measurement to the correct shaft length:
Table
| Transom Measurement | Shaft Length Needed |
|---|---|
| 15″ – 17.5″ | Short Shaft (15″) |
| 19″ – 22.5″ | Long Shaft (20″) |
| 24″ – 28″ | Extra Long Shaft (25″) |
| 28″+ | Ultra Long Shaft (30″) |
Important: Always measure at the center of the transom, not at the corners. If your measurement falls between sizes, choose the longer shaft — a shaft that is too short is worse than one that is slightly too long.

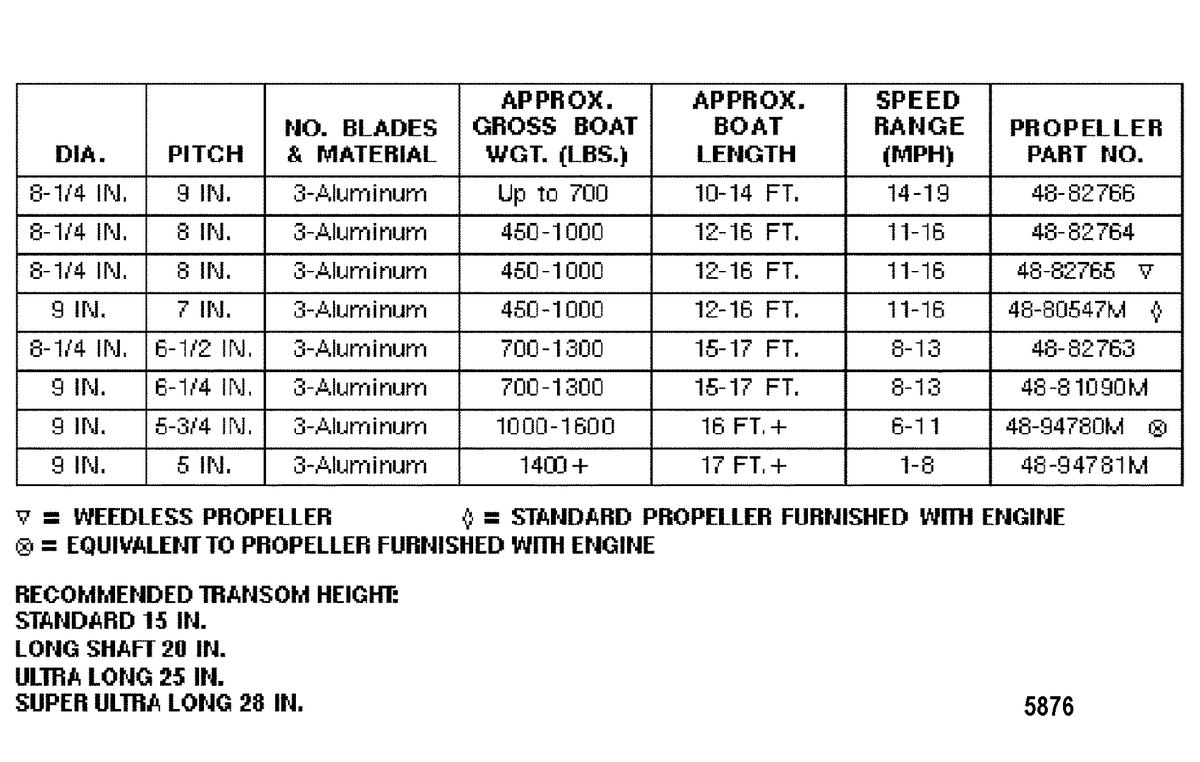

3. Propeller Selection Guide
The right propeller ensures optimal speed, fuel efficiency, and engine performance. Key factors include diameter, pitch, number of blades, and material.
Quick Propeller Reference:
Table
| Boat Weight | Boat Length | Recommended Prop |
|---|---|---|
| Up to 700 lbs | 10–14 ft | 8-1/4″ dia, 9″ pitch, 3-blade aluminum |
| 450–1,000 lbs | 12–16 ft | 8-1/4″ dia, 8″ pitch, 3-blade aluminum |
| 700–1,300 lbs | 15–17 ft | 8-1/4″ dia, 6-1/2″ pitch, 3-blade aluminum |
| 1,000–1,600 lbs | 16 ft+ | 9″ dia, 5-3/4″ pitch, 3-blade aluminum |
| 1,400+ lbs | 17 ft+ | 9″ dia, 5″ pitch, 3-blade aluminum |
Pro Tip: If your engine over-revs at wide-open throttle, you need more pitch. If it struggles to reach max RPM, you need less pitch.

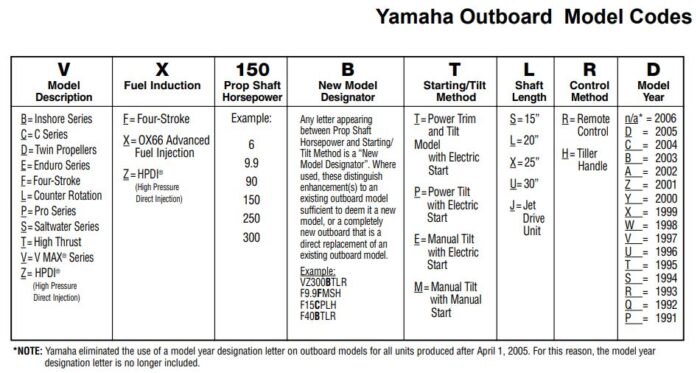

4. Understanding Outboard Model Codes

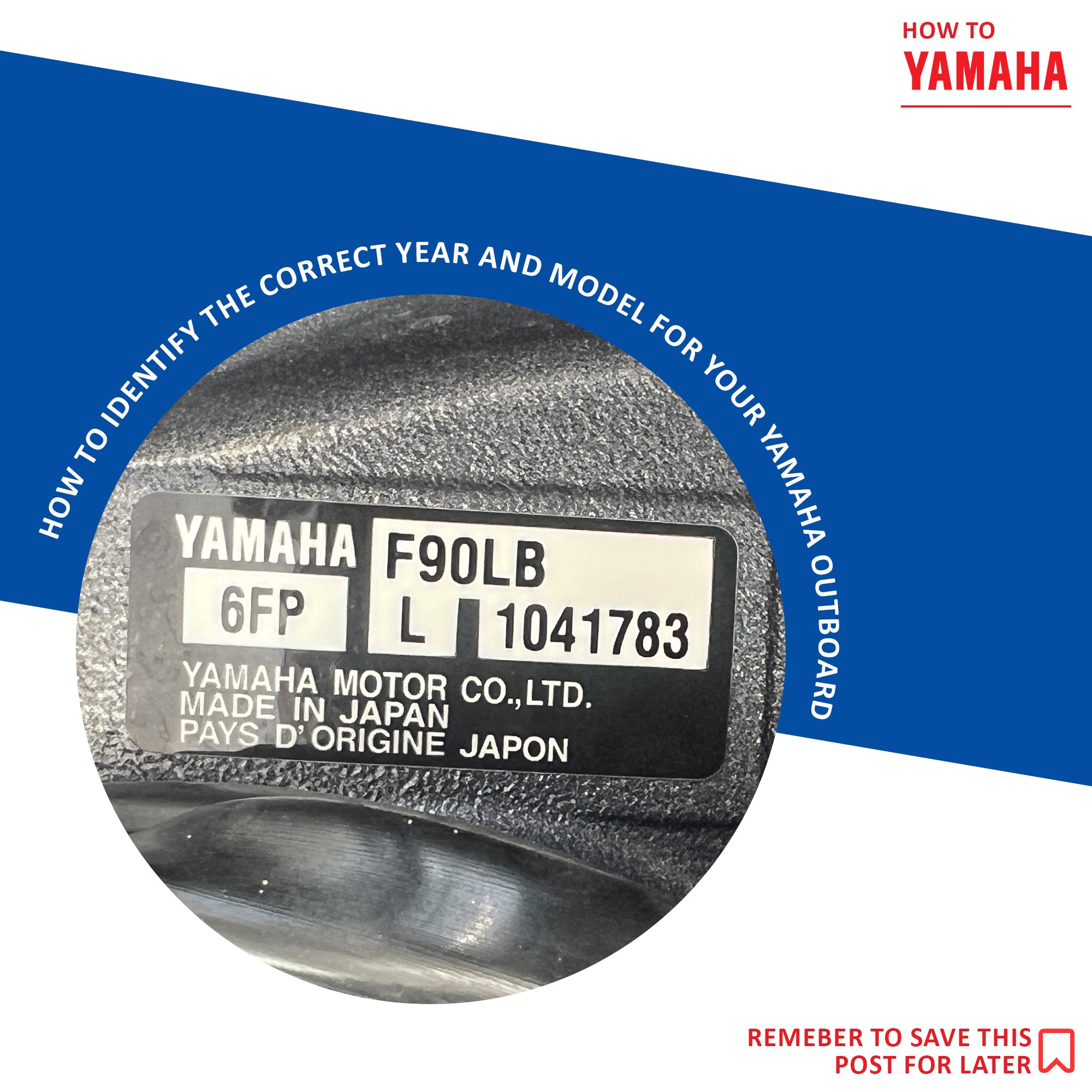

Knowing how to read your outboard’s model code helps you identify the exact specifications and ensure compatibility with replacement parts or new motors.
Yamaha Model Code Breakdown Example: F150LB
Table
| Position | Letter/Number | Meaning |
|---|---|---|
| 1st | F | Four-Stroke |
| 2nd–4th | 150 | 150 Horsepower |
| 5th | L | Shaft Length (L = 20″ Long) |
| 6th | B | New Model Designator |
Common Yamaha Code Letters:
- V (Series): B = Inshore, C = C Series, E = Enduro, F = Four-Stroke, L = Counter Rotation, P = Pro Series, S = Saltwater, T = High Thrust, V = V MAX, Z = HPDI
- X (Fuel): E = Four-Stroke, X = OX66 Advanced Fuel Injection, Z = HPDI
- L (Shaft): S = 15″ Short, L = 20″ Long, X = 25″ Extra Long, U = 30″ Ultra Long, J = Jet Drive
- R (Control): R = Remote Control, H = Tiller Handle
Note: Yamaha eliminated model year designation letters on outboards produced after April 1, 2005.

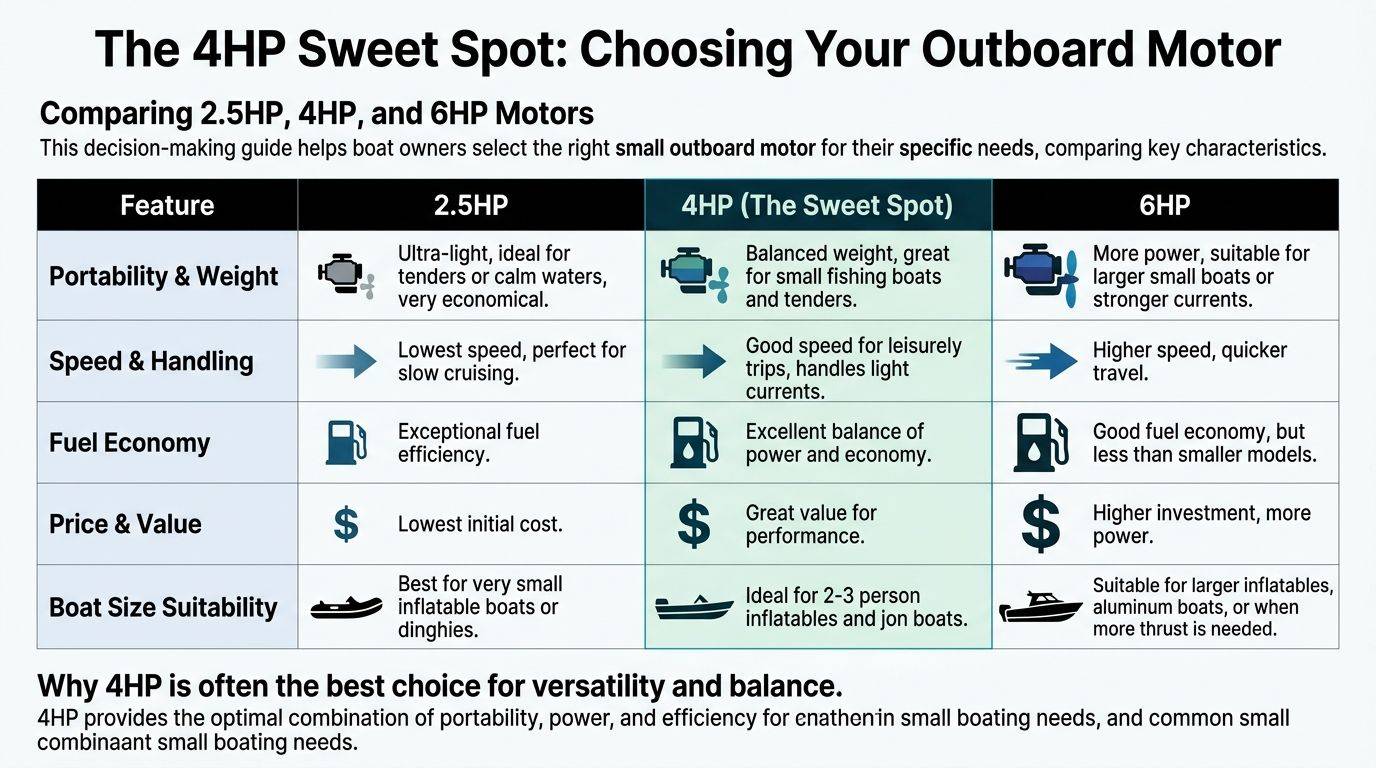

5. Small Outboard Motor Comparison
For smaller boats, tenders, and inflatables, choosing between 2.5HP, 4HP, and 6HP motors depends on your specific needs:
Table
| Feature | 2.5HP | 4HP (Sweet Spot) | 6HP |
|---|---|---|---|
| Portability | Ultra-light, ideal for tenders | Balanced weight, great for small fishing boats | More power, suitable for larger small boats |
| Speed | Lowest speed, slow cruising | Good speed for leisurely trips, handles light currents | Higher speed, quicker travel |
| Fuel Economy | Exceptional efficiency | Excellent balance of power and economy | Good economy, less than smaller models |
| Price | Lowest initial cost | Great value for performance | Higher investment, more power |
| Best For | Very small inflatables, dinghies | 2–3 person inflatables, jon boats | Larger inflatables, aluminum boats, stronger currents |
6. Still Not Sure? Let Our Experts Help
Compatibility checking can be complex — especially when dealing with repowering an older boat, matching controls, or selecting the right propeller. Our team at Regal Boats Marine BV has years of hands-on experience with all major brands.
We can help you with:
- Matching horsepower to your boat’s specifications
- Determining the correct shaft length
- Selecting the right propeller for your use case
- Verifying control system compatibility (tiller vs. remote)
- Checking fuel system requirements (2-stroke vs. 4-stroke)
- Identifying the correct model year and parts
7. Contact Our Compatibility Experts
📧 Email: contact@regalboatsmarinebv.nl
📞 Phone: +31 97005030680
📍 Visit Us: Jan de Rooijstraat 51, 5171 DR Kaatsheuvel, Netherlands
📞 Phone: +31 97005030680
📍 Visit Us: Jan de Rooijstraat 51, 5171 DR Kaatsheuvel, Netherlands
When contacting us, please provide:
- Your boat make, model, and year
- Boat length and approximate weight
- Current transom measurement (for shaft length)
- Intended use (fishing, leisure, watersports, commercial)
- Your preferred brand (Yamaha, Suzuki, Mercury, Honda, etc.)
- Budget range
8. Popular Compatibility Resources
- How to Measure Shaft Length — Step-by-step guide with diagrams
- Horsepower Calculator — Estimate the right HP for your boat
- Propeller Guide — Find the perfect prop for your motor
- Model Code Decoder — Understand Yamaha, Suzuki, and Mercury model numbers
At Regal Boats Marine BV, we specialize in matching the right outboard motor to your boat. Whether you’re repowering an existing vessel or buying a new setup, our expert team is here to ensure perfect compatibility every time.
